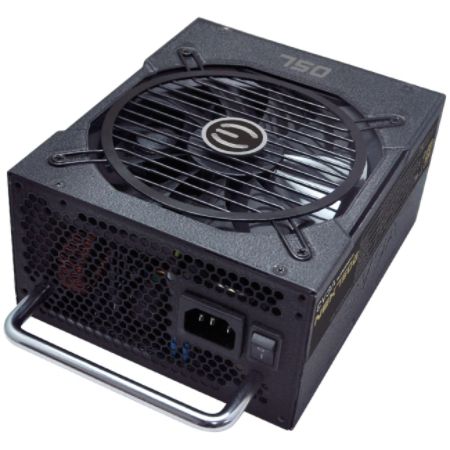

EVGA SuperNOVA NEX750G Gold Power Supply Item # 263574
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
263574
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Designed with enthusiast needs in mind the NEX series is the best choice to power next generation enthusiast computers. Combining 750 W of continuous power with exceptional performance, stunning efficiency, and cutting-edge design and features, the NEX series power supplies are what you need to take your system to the next level.
Product Details
| Item # | 263574 |
| Manufacturer # | QN6063 |
| number of fans | 1 |
| Product Series | NEX |
| height | 3.4 in. |
| Output Voltage | 3.3 V DC @ 25 A; 5 V DC @ 25 A; 12 V DC @ 20 A; -12 V DC @ 800 mA; 5 V @ 3 A |
| Product Line | SuperNOVA |
| width | 5.9 in. |
| ATI CrossFire Supported | Yes |
| NVIDIA SLI Supported | Yes |
| Output Power | 750 W |
| depth | 7.1 in. |
| Product Name | SuperNOVA NEX750G Gold Power Supply |
| Number of +12V Rails | 4 |
| Plug/Connector | IEC 60320 C14 |
| manufacturer | EVGA Corporation |
| Input Voltage Range | 100 V AC to 240 V AC |
| Input Current | 10 A @ 110V; 5 A @ 220V |
| weight | 8.50 lb |
| 80 PLUS Certification | 80 PLUS Gold |
| brand name | EVGA |
| protection type | Over Current; Over Power; Over Temperature; Over Voltage; Under Voltage; Short Circuit |
| Input Voltage | 110 V AC; 220 V AC |
| Input Voltage Type | AC |
| Output Current | +5V - 25 A ¦ +3.3V - 25 A ¦ +12V1 - 20 A ¦ +12V2 - 20 A ¦ +12V3 - 20 A ¦ +12V4 - 20 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A |
| form factor | Internal |
| Receptacles | 1 x 24-pin ATX Motherboard; 2 x 4+4pin EPS12V Motherboard; 4 x 6+2pin PCI-E; 9 x Serial ATA; 6 x 4-pin LP4 Peripheral Device; 1 x 4-pin SP4 Floppy Drive; 4 x 6-pin PCI-E |
| Modular | Yes |
| warranty length | 5-year limited |
| model name | NEX750G |
| Efficiency | 90% |
| Show More ▾ |
